Every cap I build is made to your exact dimensions — which means getting the measurements right is the most important step. Don't worry if you've never done this before. It takes about 10 minutes and a tape measure. If you're ever unsure, text me a photo and I'll walk you through it.
Download Your Free Measuring Worksheet
I put together printable PDF worksheets for each chimney type — with diagrams, dimensions, and everything you need to get it right the first time. Print it out, take it up to the roof, and fill it in on the spot.
→ Single Flue Chimney Chase Cover Measuring Worksheet (PDF)
→ Multi-Flue Chimney Cap Measuring Worksheet (PDF)
Have your measurements ready? Browse my custom chimney caps → — custom fabricated to cover your entire chimney top. Ships anywhere in the USA.
What You'll Need
- A tape measure
- A pencil and paper (or download the free worksheet for your chimney type above)
- Your phone to take a photo of the chimney top

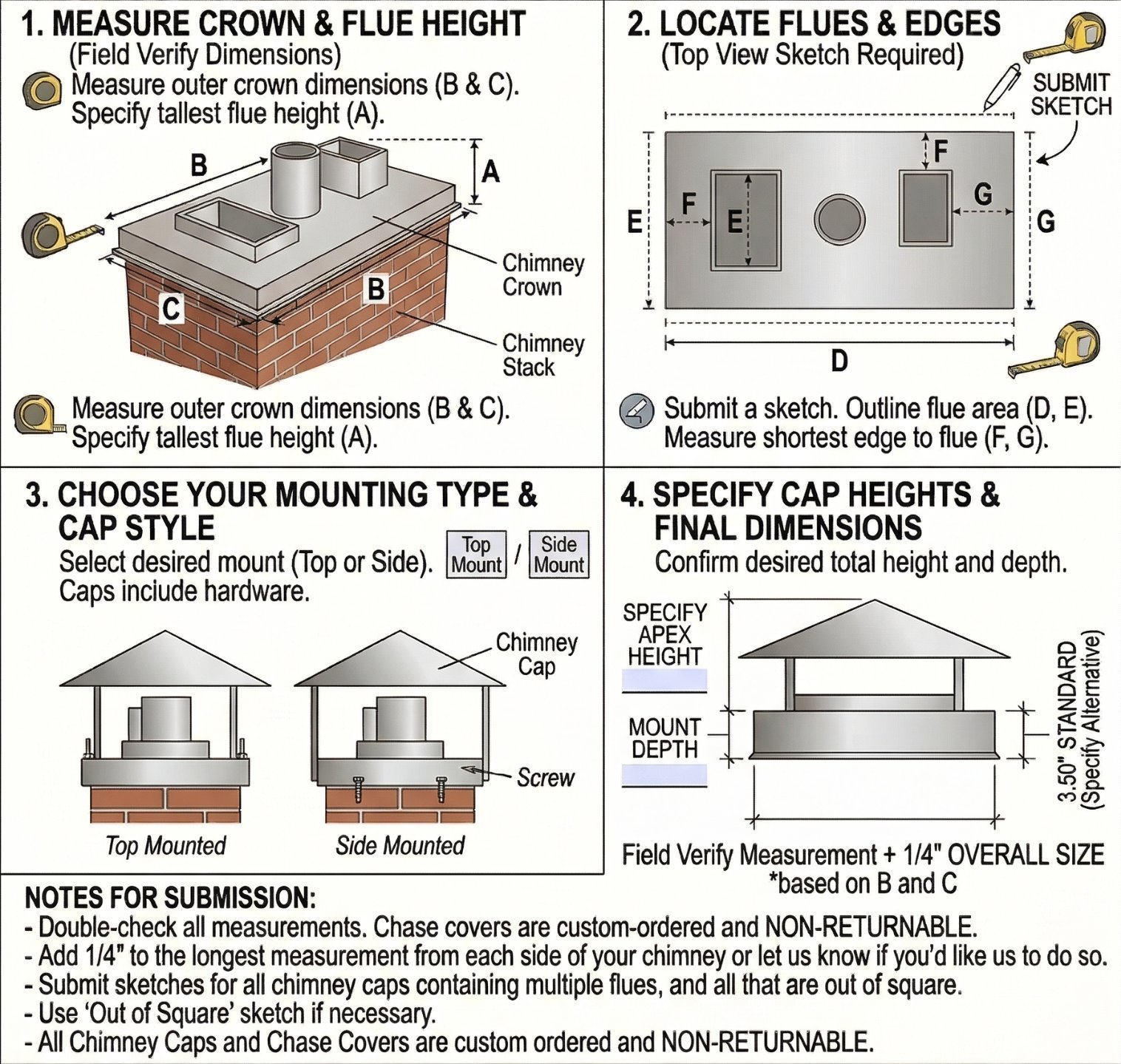

Step 1: Measure the Chimney Crown
The crown is the flat masonry surface at the very top of your chimney — the surface the cap will sit on. This is your most important measurement.
- Length: Measure the full outside length of the crown
- Width: Measure the full outside width of the crown
Measure to the nearest 1/8 inch. If your measurement falls between marks, always round up — it's easier to adjust a slightly loose fit than to force a cap that's too small.
Top Mount Caps — Measuring Note
If you're ordering a top-mount cap, measure the area where you want the screen to sit on the chimney top — not the outside of the crown. Add 6" to both the length and width. The cap extends 3" beyond the screen opening on all four sides.
Not sure whether you need a top mount or side mount? Read the guide →
Step 2: Measure the Flue
The flue is the clay pipe(s) or metal pipe(s) that stick up from the crown or chase cover. Measure the outside dimensions of each flue tile or pipe, and if applicable, the termination cap on metal flue pipes.
- Length and/or width of each flue protruding above the crown
- Height: how far the flue(s) stick up above the crown surface
If you have multiple flues, measure each one and note their positions.
Step 3: Check for Obstructions
Before ordering, look for anything that could affect the fit:
- Multiple flues — are they close together or spread apart?
- Uneven or sloped crown surface
- Nearby roof lines, vents, or antennas
- Existing hardware or mortar buildup on the crown
Common Measuring Mistakes to Avoid
After 32 years of building custom caps, a few measuring mistakes come up more than any others:
Measuring the flue tile instead of the crown, or vice versa. These are two different measurements for two different purposes — the crown measurement determines the cap's footprint, the flue measurement determines the screen opening. Mixing them up is the single most common error I see.
Rounding down instead of up. A cap that's a hair too small won't sit flush and can leave gaps for water and animals. A cap that's a hair large simply overlaps slightly more — always the safer direction to round.
Forgetting the height of the flue above the crown. This measurement matters more than people expect, especially on multi-flue setups where flues stick up at different heights. Skipping it is one of the fastest ways to end up with a cap that doesn't clear the flue properly.
Not accounting for uneven or sloped crowns. Older masonry crowns settle unevenly over decades. If yours isn't perfectly flat, mention it when you send your measurements — it changes how the base of the cap needs to be fabricated.
Pro Tips
- Measure twice. Seriously. A second pass takes 60 seconds and prevents expensive mistakes.
- Always round up. When in doubt on a measurement, go to the next 1/8 inch up.
- Send me a photo. Text a clear photo of your chimney top to (609) 352-9840. I can often spot potential fit issues before I cut a single piece of metal — this is free and takes about 5 minutes.
What Happens After You Send Your Measurements
Once I have your dimensions and a photo, I'll double check the fit, confirm the mount type, and put together a custom quote for your exact chimney — no standard sizing, no guessing. If anything about the measurements looks off, I'll reach out before quoting rather than after you've ordered. Every cap is fabricated to order once we've confirmed the numbers together, so getting this step right up front means everything downstream goes smoothly.
Still Not Sure? I'll Help.
I've helped homeowners and contractors measure chimneys for 32 years. If something doesn't look right or your chimney has an unusual configuration, reach out before you order. I'd rather spend 10 minutes on the phone getting it right than have you deal with a return.
Call or text me at (609) 352-9840 or use the contact form. I ship custom caps anywhere in the USA.
Browse my custom chimney caps → — custom fabricated to cover your entire chimney top. Ships anywhere in the USA.
