If your fireplace smokes back into the room, your chimney draws poorly, or you've been told the stack doesn't meet the 2-foot-10-foot height rule, you're dealing with one of the most common — and most fixable — chimney problems there is. The answer isn't always a mason and a rebuild. Sometimes it's a cap.
Extended height chimney caps are exactly what they sound like: taller-than-standard caps that add meaningful height to your flue termination without touching the masonry. They've been solving chimney draft problems for decades, and the principle behind them is older than the country.
Why Chimney Height Matters
A chimney works on pressure differential. Hot combustion gases are lighter than the surrounding air, so they rise — but only if the flue termination clears the turbulent air layer close to the roofline. Wind rolling over a roof creates a low-pressure zone that can reverse that differential and push air back down the flue. That's downdraft, and it's the reason a fire that draws perfectly in still air suddenly smokes when the wind picks up.
The IRC requires chimneys to terminate at least 2 feet above any part of the roof within 10 horizontal feet, and at least 3 feet above the point of penetration. A lot of older chimneys, especially on low-pitched roofs, fall short of that standard. Raising the masonry is one option. Adding an extended height cap is usually a faster and less expensive one.
Beyond code compliance, height buys you margin. The higher the termination, the further it sits above that turbulent air layer, and the more consistent the draw.
This Isn't a New Idea — Chimney Pots Figured It Out Centuries Ago
Chimney pots are the original extended height solution. They've been standard on European and British rooflines since at least the medieval period, and they were common on American homes through the early twentieth century. Walk through any historic district and you'll still see them — tall terracotta cylinders rising from brick stacks, sometimes plain, sometimes ornate.
They weren't decorative afterthoughts. They were engineered. A traditional chimney pot is sized approximately 15% smaller in diameter than the flue it sits on. That reduction creates a bottleneck effect — air accelerates through the narrower opening, which increases upward velocity and improves draw. Combined with the added height, pots lifted the termination point above the worst of the roofline turbulence and kept the flue pulling even in adverse conditions.
Chimney pots fell out of common use in the mid-twentieth century as gas and oil heat replaced wood and coal in most homes. The chimneys were still there, but they were either abandoned or capped with whatever was cheapest. A lot of that institutional knowledge about chimney draft and termination height went with them.
What Extended Height Chimney Caps Do Differently
A standard chimney cap sits low — just enough to keep rain out and animals away. It doesn't add meaningful height, and it doesn't address draft problems caused by a short or turbulent termination.
An extended height cap raises the functional termination point by several inches to a foot or more above the crown, depending on how much additional height you need. The physics are the same as a chimney pot: get the opening up into cleaner air, improve the pressure differential, and the flue draws the way it's supposed to. No masonry work, no permit for structural changes, no contractor coordination. The cap ships to you, and it installs the same way a standard cap does — either crown-sit or side-mounted through the masonry with a drip edge detail.
I fabricate mine in copper, Kynar-coated aluminum, and Galvalume. Each one is built to your exact flue dimensions. There's no standard size in sheet metal work — every chimney is different, and a cap that doesn't fit right defeats the purpose.
The Three Extended Height Caps I Make
I currently offer three designs in the extended height category, each with a different profile to suit different roof styles and architectural contexts.
The Top Vent Curved Panel Cap is the most architectural of the four — curved panels, vented on all sides, with a profile that reads as a designed element rather than a utilitarian add-on. It works well on traditional homes where a cap with some presence is appropriate.
The Crown Top Vent Cap takes that further — a stepped crown section sits above the curved panel body, giving it a more formal, historic silhouette. It's the closest thing I make to a traditional chimney pot profile in sheet metal, and it's particularly well-suited to brick Colonials, older stone homes, and historic preservation work.

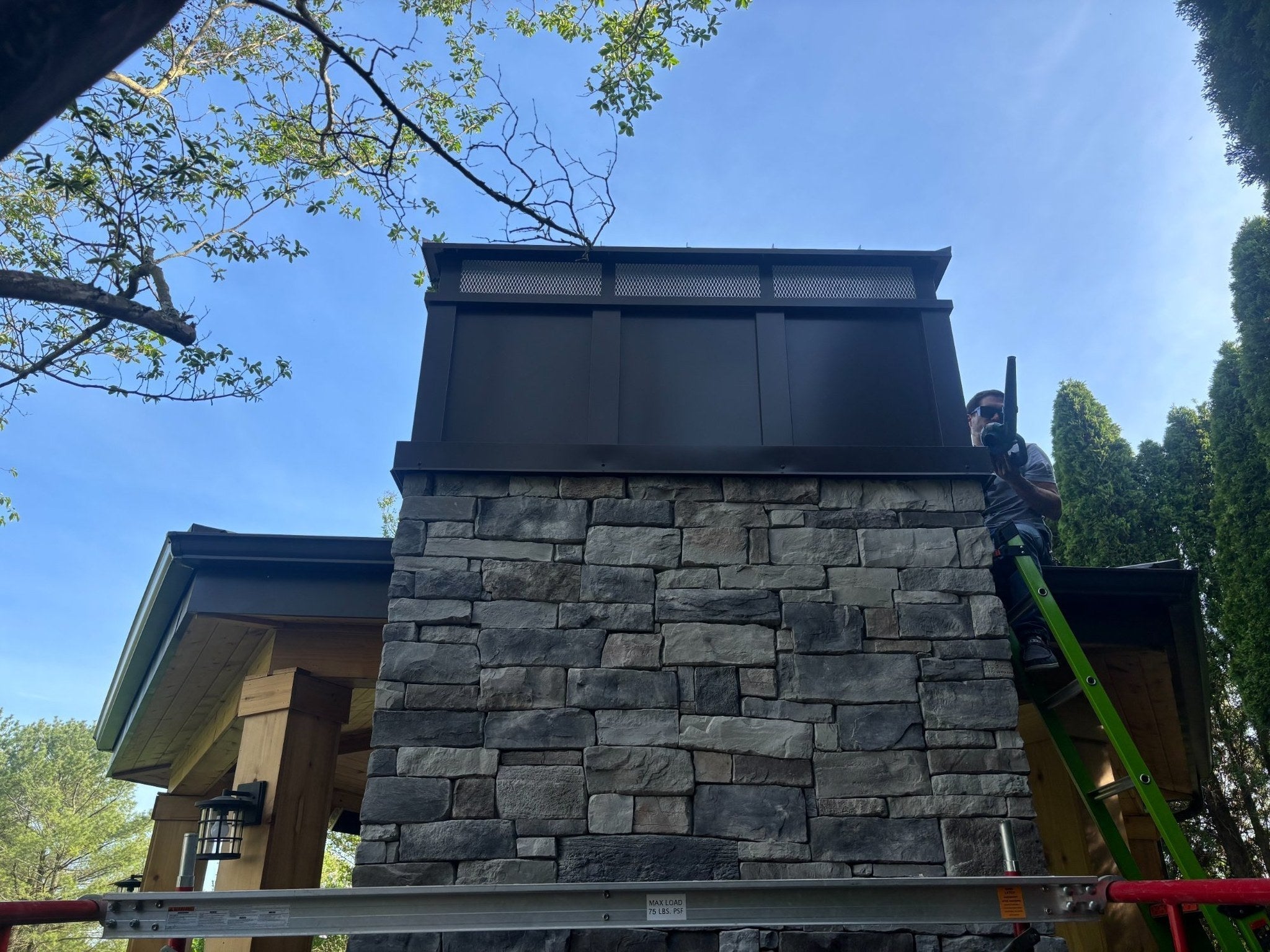

The Board & Batten Top Vent Cap is a more textured design — vertical panel detailing that suits craftsman homes, farmhouses, and contemporary builds with board and batten siding or cladding. The extended body reads as intentional rather than added on.
All three are available in 16oz copper with a soldered collar, Kynar-coated aluminum in a range of standard colors, and Galvalume. They're all custom-sized to your flue and ship nationwide.
If you're not sure which design fits your roof, send me your flue dimensions and a photo of the chimney — I'll point you in the right direction before you order anything.
Browse the full Extended Height Chimney Caps collection or call me directly at (609)352-9840.
