If you've ever had a chimney company tell you your crown is cracked, you're not alone. It's one of the most common chimney problems in the country — and most homeowners have no idea what a chimney crown even is until someone's standing on their roof pointing at one.
Here's what it is, why it fails, and what actually protects it.
What Is a Chimney Crown?
The chimney crown is the concrete or mortar slab that sits at the very top of a masonry chimney. It surrounds the flue tile — the clay pipe that carries smoke out of your house — and seals the gap between the liner and the outer brick or stone of the chimney.
Its job is to shed water away from that gap and protect the masonry below it. When it's working correctly, rain hits the crown, runs off the sloped edges, and drips clear of the chimney walls.
When it's not working — which happens to virtually every masonry chimney eventually — water goes straight into the chimney structure.
Crown vs. Cap: Why the Terms Get Confused
I get calls all the time from homeowners asking about "chimney cap repair" when what they're actually describing is crown damage — cracking, spalling, a chunk missing from the top of the chimney. The confusion is understandable. Both sit at the top of the chimney, and neither term is used consistently by contractors.
Here's the simple way to keep them straight: the crown is the concrete or mortar slab itself — poured, fixed, part of the chimney structure. A cap is a separate metal component that sits on top of or over the crown. You can't repair a cap; you replace it. You can't replace a crown the way you replace a cap; you repair or rebuild it.
Knowing which one you actually have a problem with saves you a wasted call to the wrong type of contractor.
Why Chimney Crowns Always Crack
Concrete and mortar are rigid. Your chimney is not — it expands and contracts with every temperature change, every freeze-thaw cycle, every hot fire followed by a cold night. Over time, that movement wins. Cracks form, usually starting small and spreading outward from the flue tile.
Once a crack opens up, water gets in. Water freezes. The crack gets bigger. More water gets in. By the time you notice a water stain on your ceiling or smell mildew near the fireplace, the damage has usually been building for years.
Crown repair costs $500–$3,000. A full chimney rebuild runs $10,000–$20,000 or more.
How to Spot Crown Damage Yourself
You don't need to climb on your roof to catch most crown problems early. Look for these signs from the ground or with a pair of binoculars:

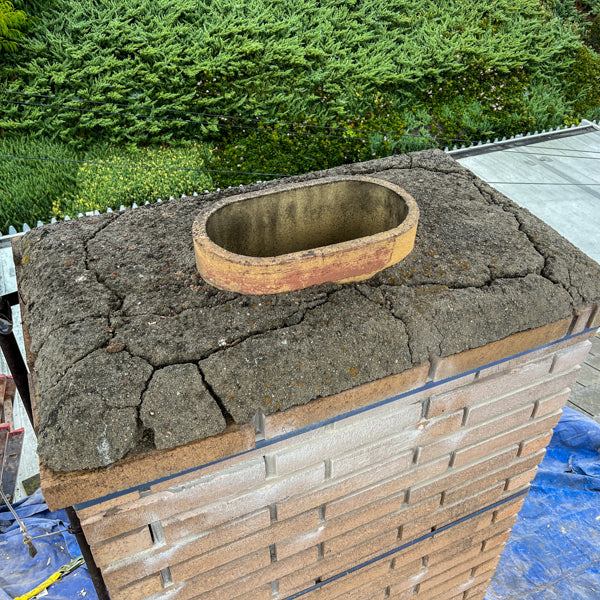

Visible cracking — hairline cracks radiating out from the flue tile, or a single crack running across the crown's surface. Cracks widen over time, so even a small one is worth watching.
White staining (efflorescence) — a chalky white residue on the brick below the crown means water is already moving through the masonry and carrying dissolved minerals out with it. This is a sign water intrusion has been happening for a while, not a cosmetic issue.
Spalling brick — brick or mortar joints below the crown that are flaking, crumbling, or popping off in chunks. This is freeze-thaw damage in progress, usually caused by water getting in from above.
Rust staining or sagging — on chimneys with a metal cap already installed, rust streaks running down from the crown or a cap that looks like it's sitting unevenly can both point to crown movement underneath.
If you're seeing any of these, it's worth having the chimney looked at before the next freeze-thaw cycle, not after.
What a Store-Bought Cap Does — And Doesn't Do
A standard single-flue cap sits on top of the clay flue tile. It keeps rain and animals out of the flue opening itself — but the crown around it remains completely exposed to weather. Every rainstorm, every freeze, every thaw hits that crown directly.
A store-bought cap does nothing to protect the crown.
What Actually Protects the Crown
A custom fabricated chimney cap — also called a chimney topper, chimney rain cap, or chimney cover — covers the entire chimney top. Instead of sitting on the flue tile, it spans the full width of the chimney and acts as a standing-seam metal roof for the chimney. Rain rarely touches the crown — and when it does, it drains away rather than pooling on exposed masonry. Freeze-thaw cycles can't crack what they can't reach.
This is the difference between a cap that covers a hole and a cap that actually protects a chimney.
How Often Should the Crown Be Inspected?
Even with a full-coverage custom cap installed, I recommend a visual check once a year — ideally in early fall, before the first hard freeze of the season. If you're using your fireplace regularly, that same visit is a good time to check on flue and liner condition too. A cap protects the crown from weather, but it doesn't replace routine chimney maintenance. I cover what caps do and don't protect against in more detail in my post on whether chimney caps actually prevent chimney fires.
How Much Does a Custom Cap Cost Compared to Crown Repair?
A custom fabricated chimney cap from Archaic Metal starts around $1,050 shipped. Crown repair starts around $500 — but that's for a fresh crack on a chimney that hasn't had water infiltrating for years. Once water damage works into the mortar joints and brick, you're looking at significantly more.
One custom cap is almost always cheaper than the first repair bill — and it prevents every repair bill after that.
