Shipping
Large caps ship via LTL freight in a custom-built, heat-treated wood crate, fully insured. I need your exact dimensions, address type (residential or commercial), and zip code before you order. Call or text (text is best) (609) 352-9840 to receive a custom freight quote. LTL freight means your order will arrive on a full-size tractor-trailer. The driver will bring the crate to the back of the truck with liftgate service — curbside delivery. You are responsible for getting it up your driveway from there. Delivery add-ons are available if needed. If your property can't accommodate a full-size freight truck or you don't have help moving the crate from the curb, I can arrange delivery add-ons for the freight company to move the crate to a designated area on or inside your property. Terminal pickup and smaller delivery vehicle options are also available. This way it arrives the way it left my shop — in perfect condition.
How to Order Full Size Caps
Select your approximate chimney width and approximate chimney length using the size selectors above. Your cap will be custom fabricated to your exact dimensions — add a minimum of 1/4" to your measurements for proper fit.
Contact me with your chimney dimensions and zip code before purchasing and I'll confirm sizing and provide an exact shipping quote. Lead time is 3–4 weeks from measurement confirmation.
Questions? Call or text: (609) 352-9840
Have a Wood-Framed Chase?
If your chimney sits on a prefab wood-framed chase, you might need a chase cover in addition to this cap. The cap mounts on top of the chase cover — it does not have a flat bottom with pre-cut holes for your flue pipe(s). If there's currently no metal cover on your chase, you need both. Browse custom chimney chase covers →
The Clean-Line Extended Height Cap for Masonry Chimneys

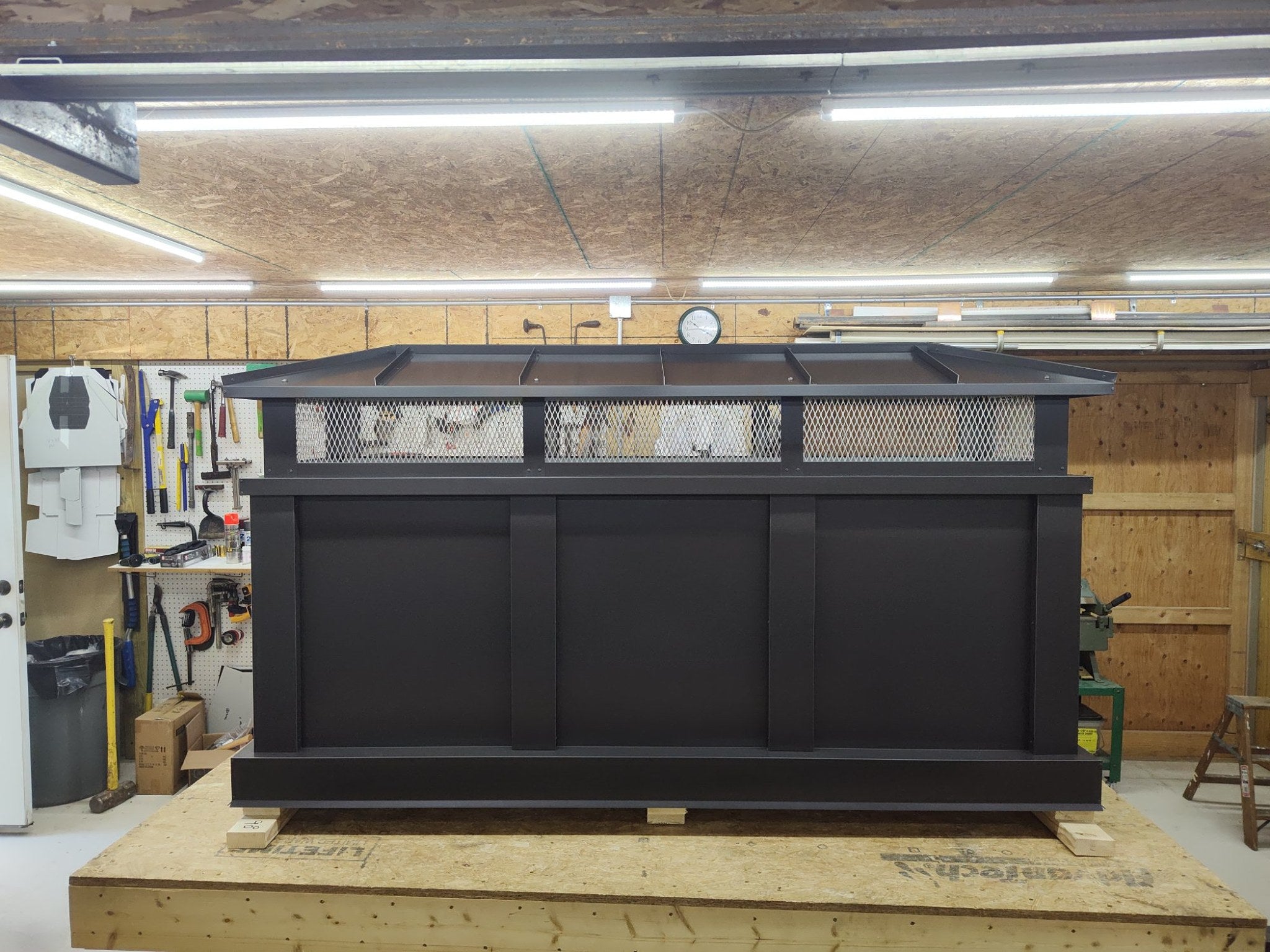

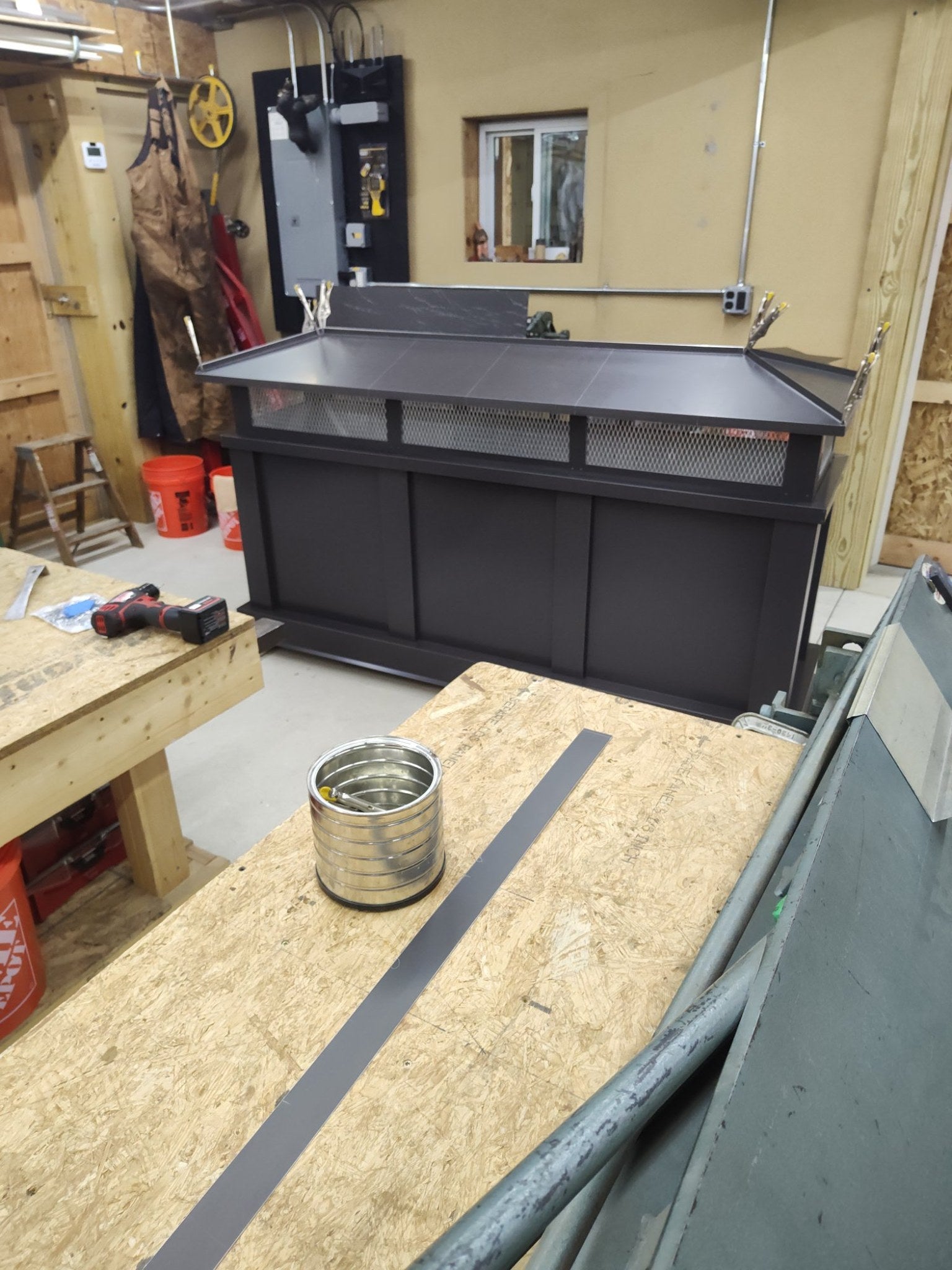

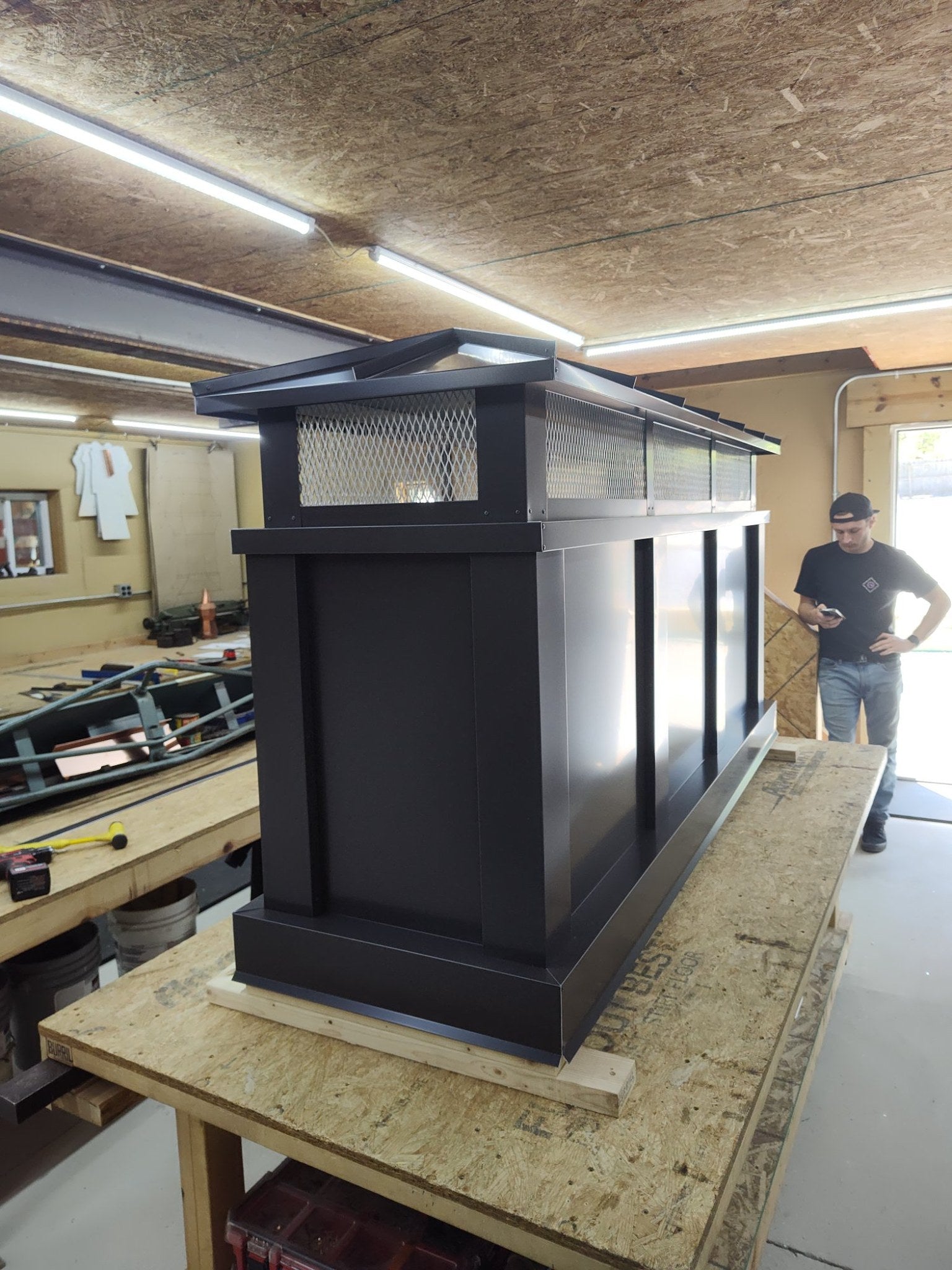

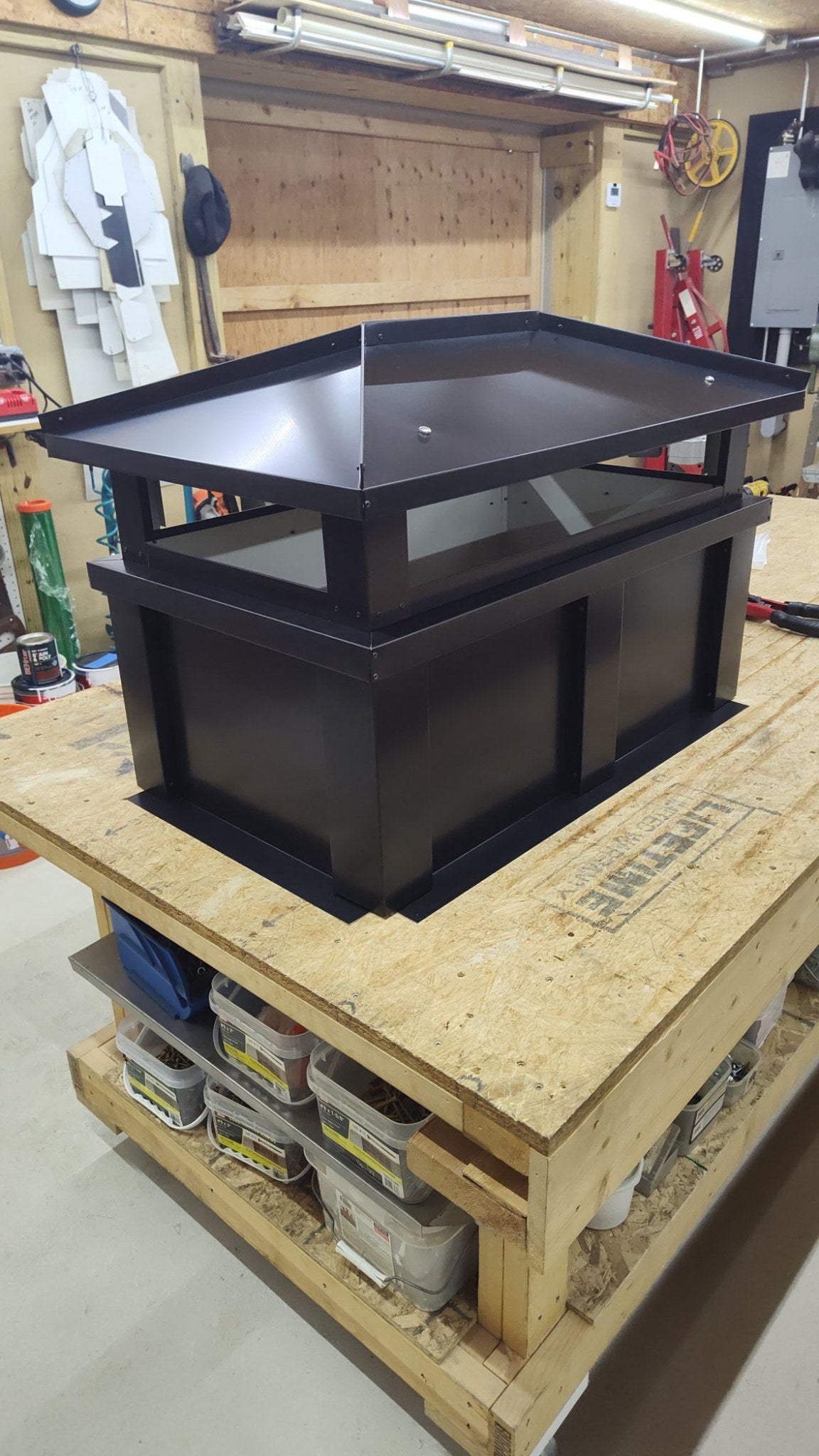

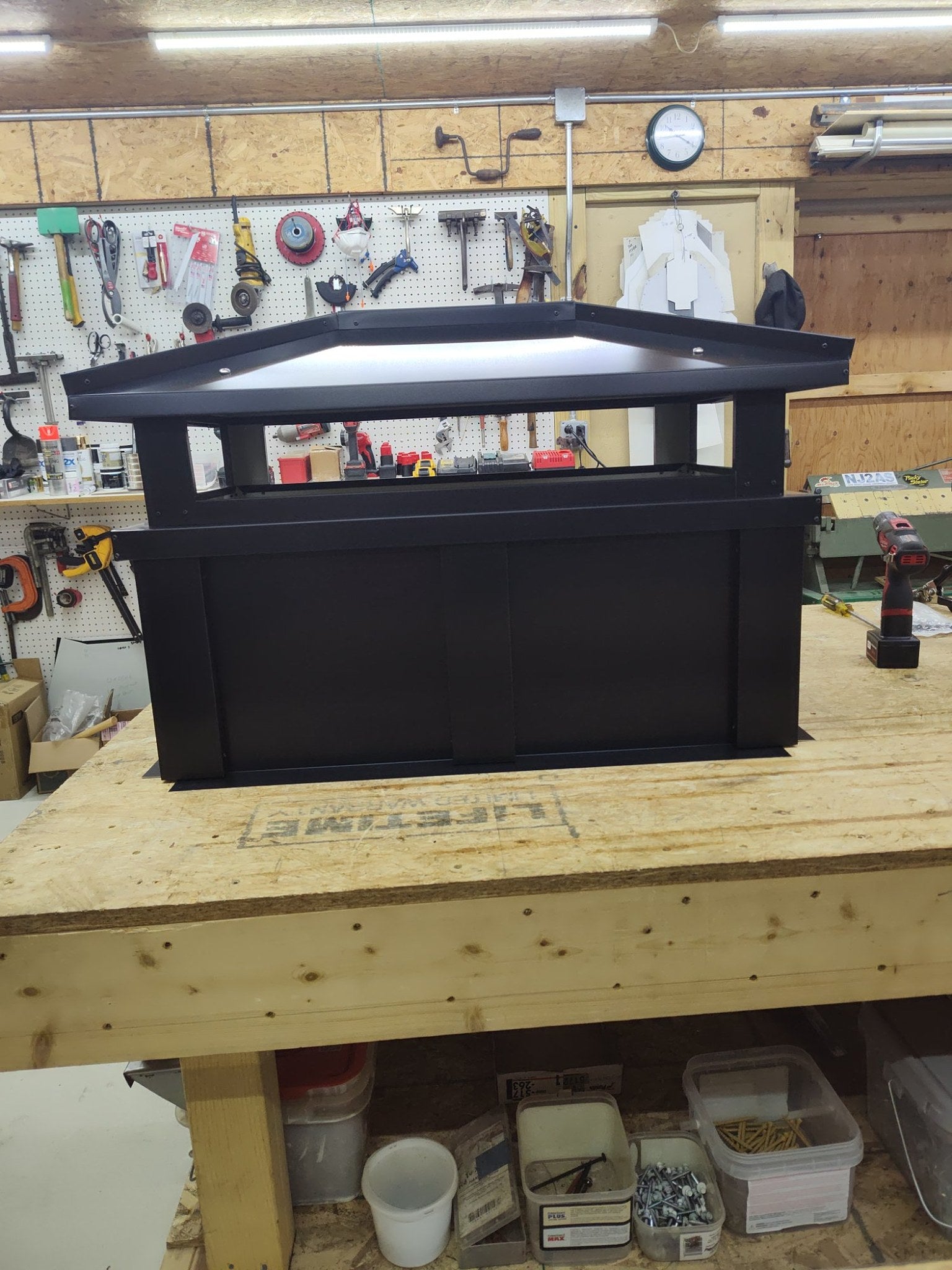

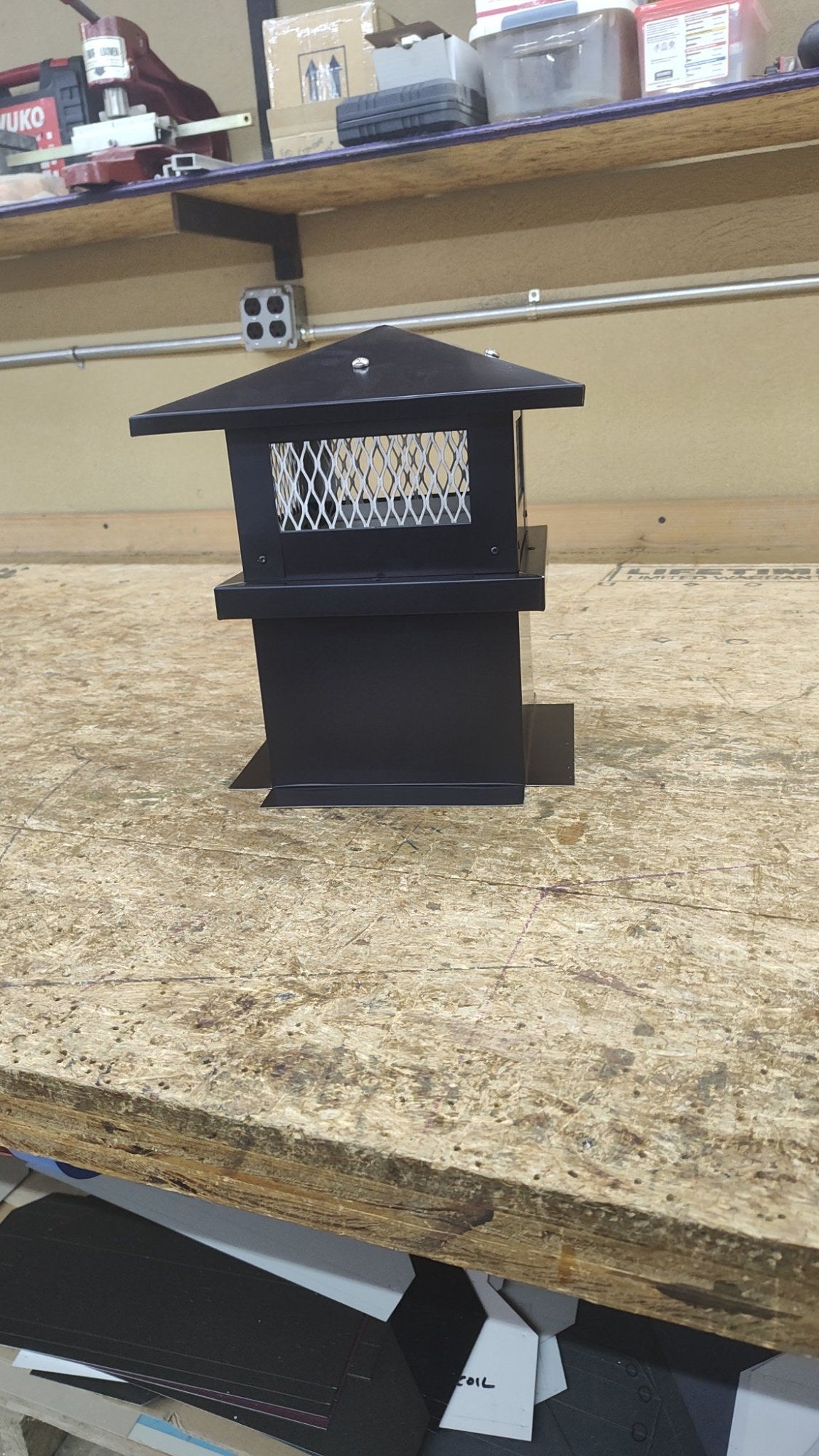

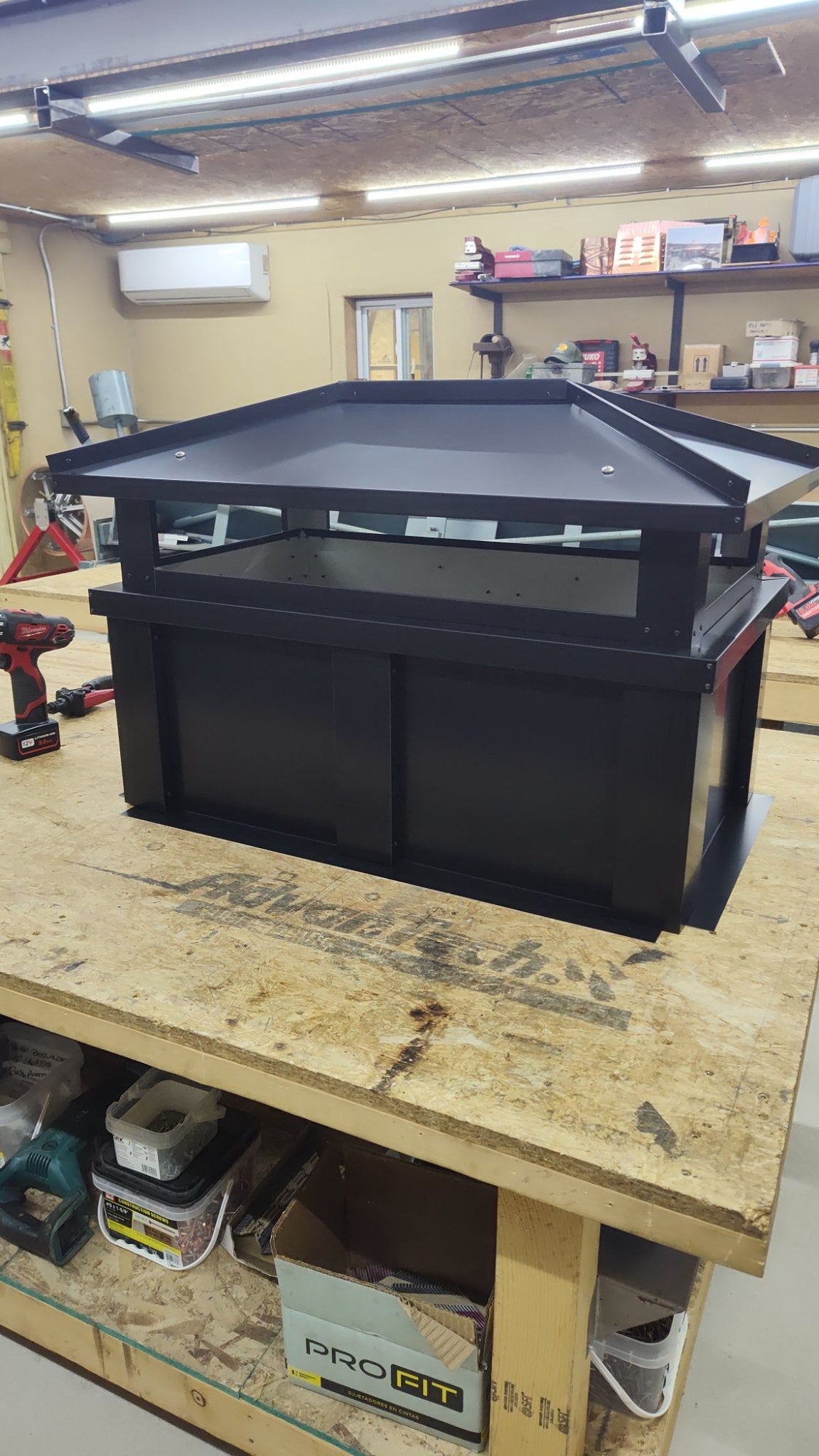

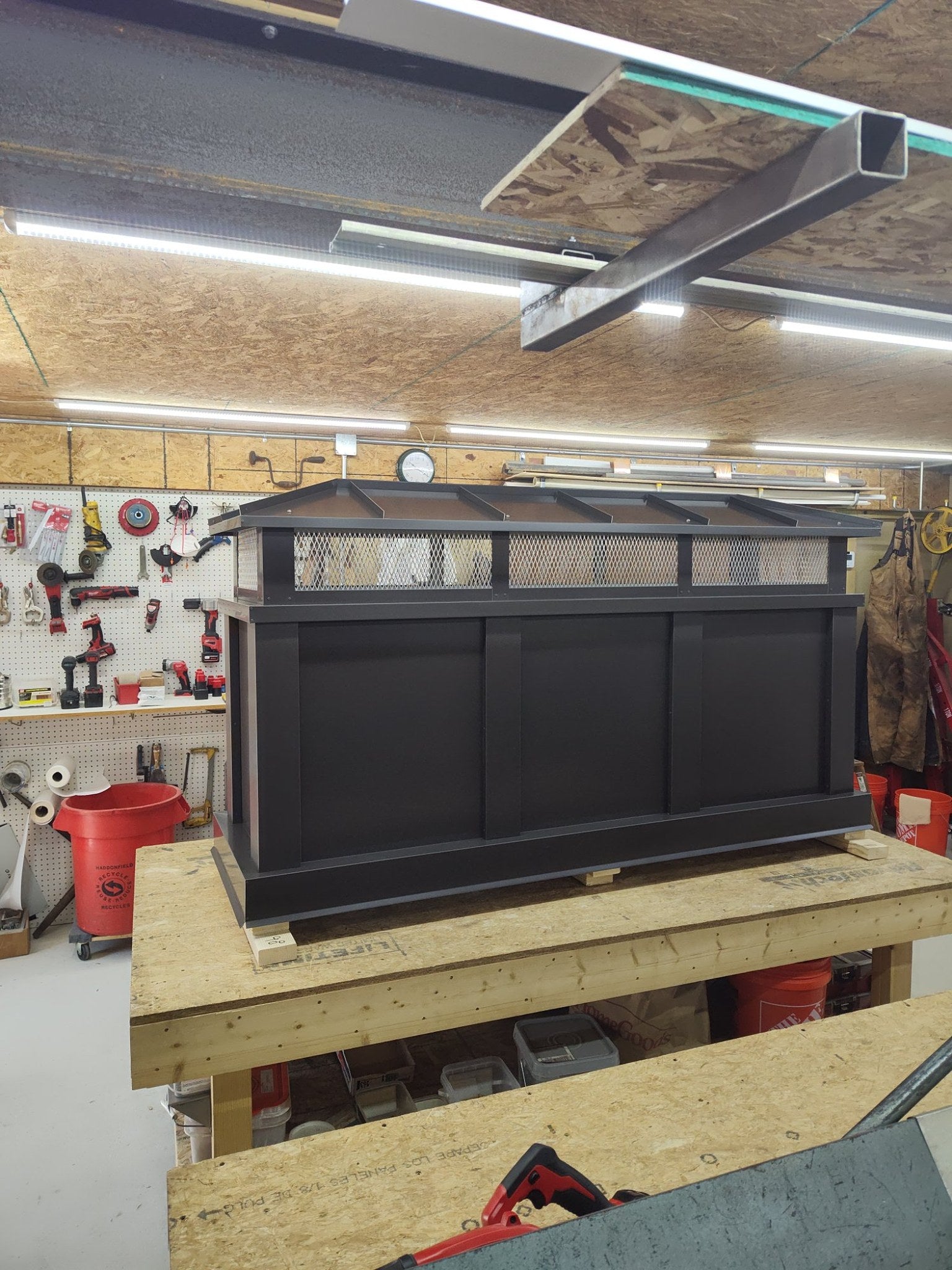

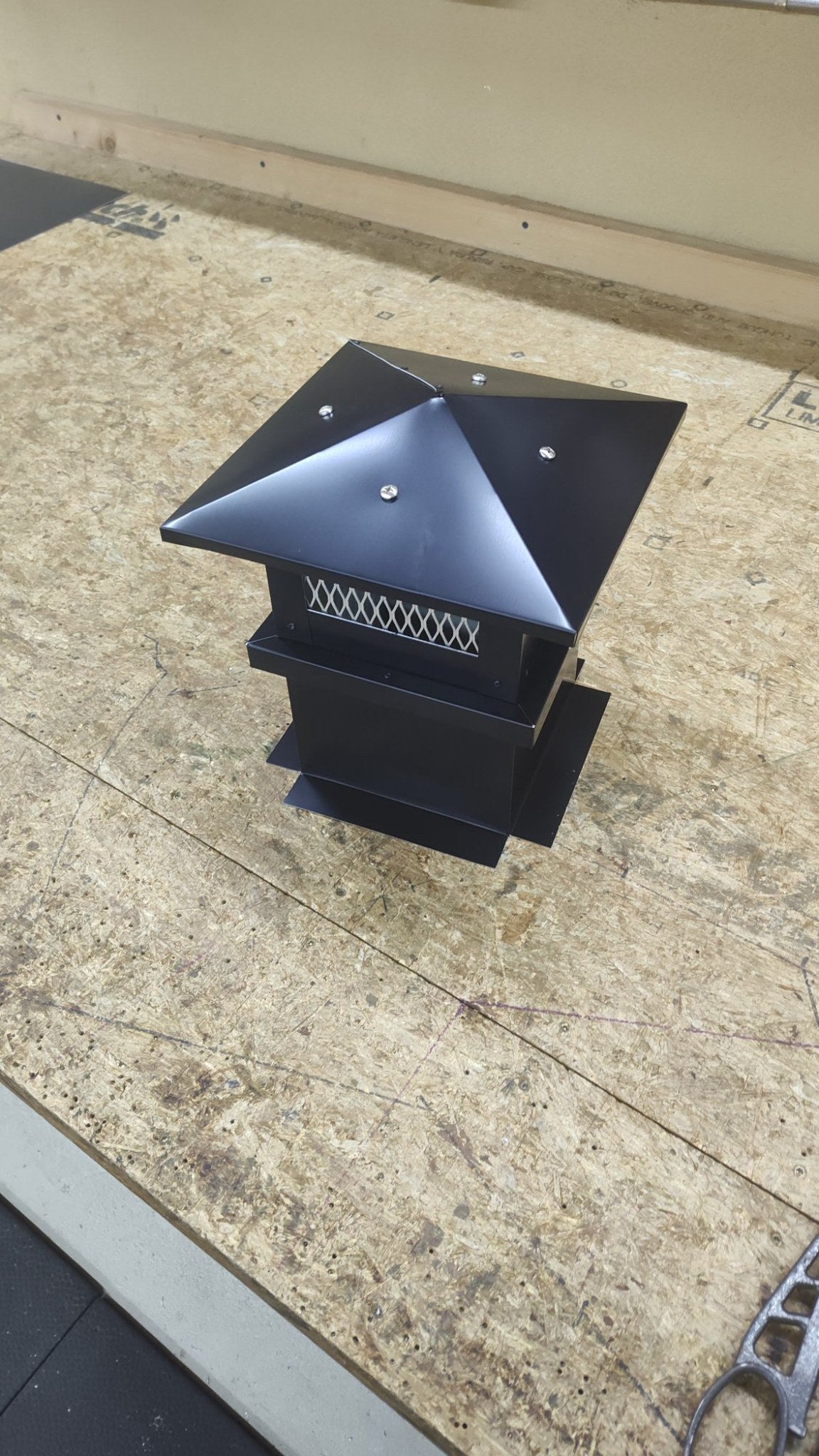

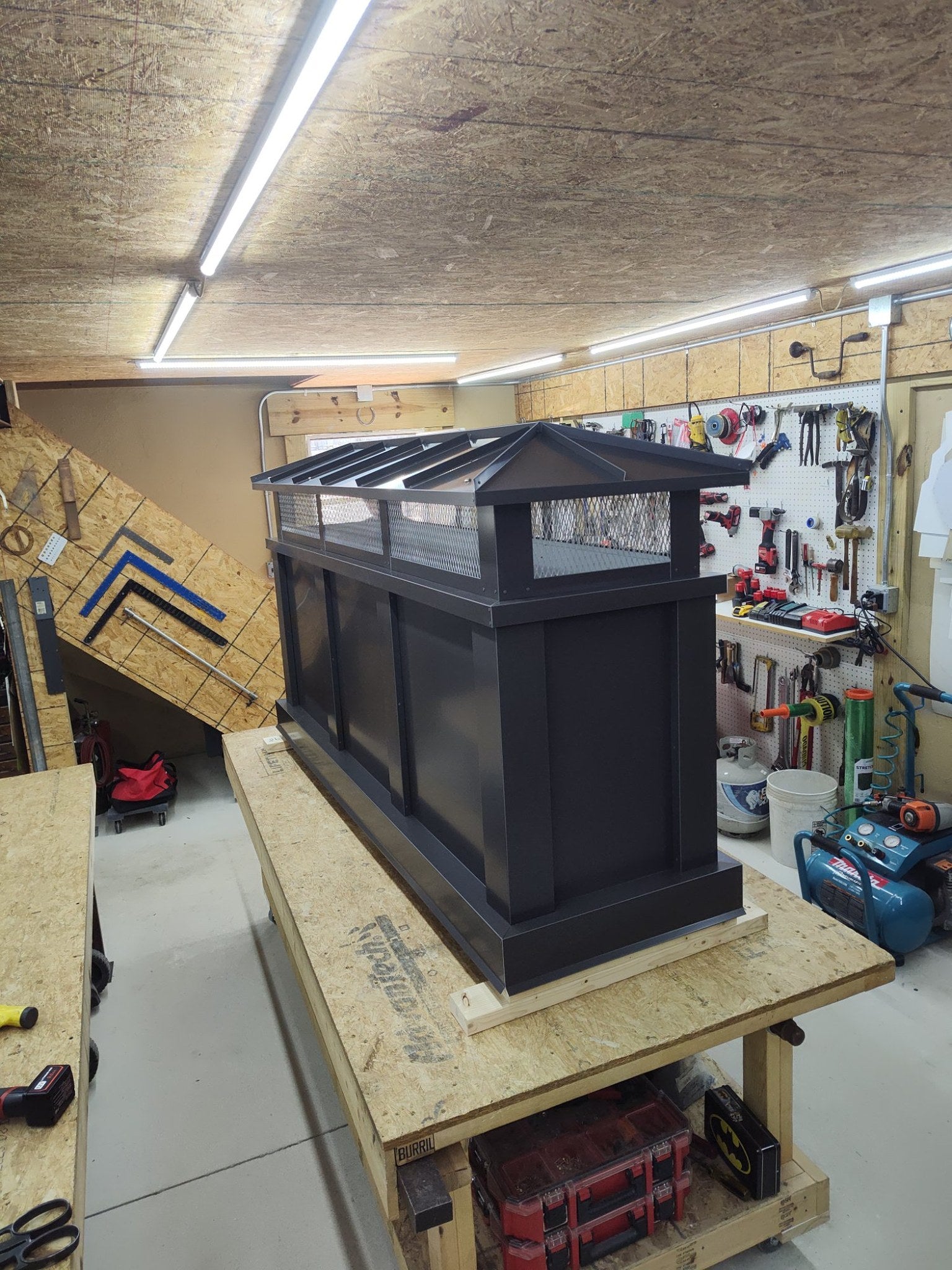

The Board & Batten Top Vent is an extended height chimney cap with a straightforward architectural profile: solid flat panels on the body, a hip roof on top, and a screened vent section between them. No curves, no stepped crown — just clean vertical lines that read well on traditional and craftsman-style homes. If your chimney needs more height and you want a cap that looks like it belongs there, this is it.
Like every cap I build, it's hand-fabricated to your exact chimney dimensions in my shop in Berlin, NJ. The board and batten panel layout, the hip roof pitch, the vent screen opening, the base flange — all of it is cut, formed, and assembled by hand to fit the chimney it's going on.
Why an Extended Height Cap
Building code requires a chimney to extend at least two feet above any roof surface, ridge, or obstruction within ten feet of it. When a chimney falls short of that, a masonry extension means hiring a mason to add courses of brick — expensive, disruptive, and often overkill. An extended height chimney cap adds the needed height directly to the flue without touching the masonry crown. It functions the same way chimney pots did in the 18th century: extend the effective height, improve draft, solve the problem.
Height problems also cause downdraft. If smoke is backing up into the house when the wind picks up, a chimney that doesn't clear surrounding roof lines is often the reason. Adding height fixes it without a service call.
Installation
The Custom Board & Batten Top Vent Chimney Cap installs one of two ways depending on your chimney. Crown-sit places the cap directly on the chimney crown — no masonry work required. Side-mount uses a drip edge detail fastened through the side of the chimney masonry for a more permanent attachment. No pitch-matching, no friction-dependent flue clamps. The cap fastens to the chimney and stays put.
Material Options
16oz Copper — warm penny tone new, weathering through browns to a natural patina over years. The most durable and visually distinctive option. Riveted construction with copper rivets and solid brass mandrels.

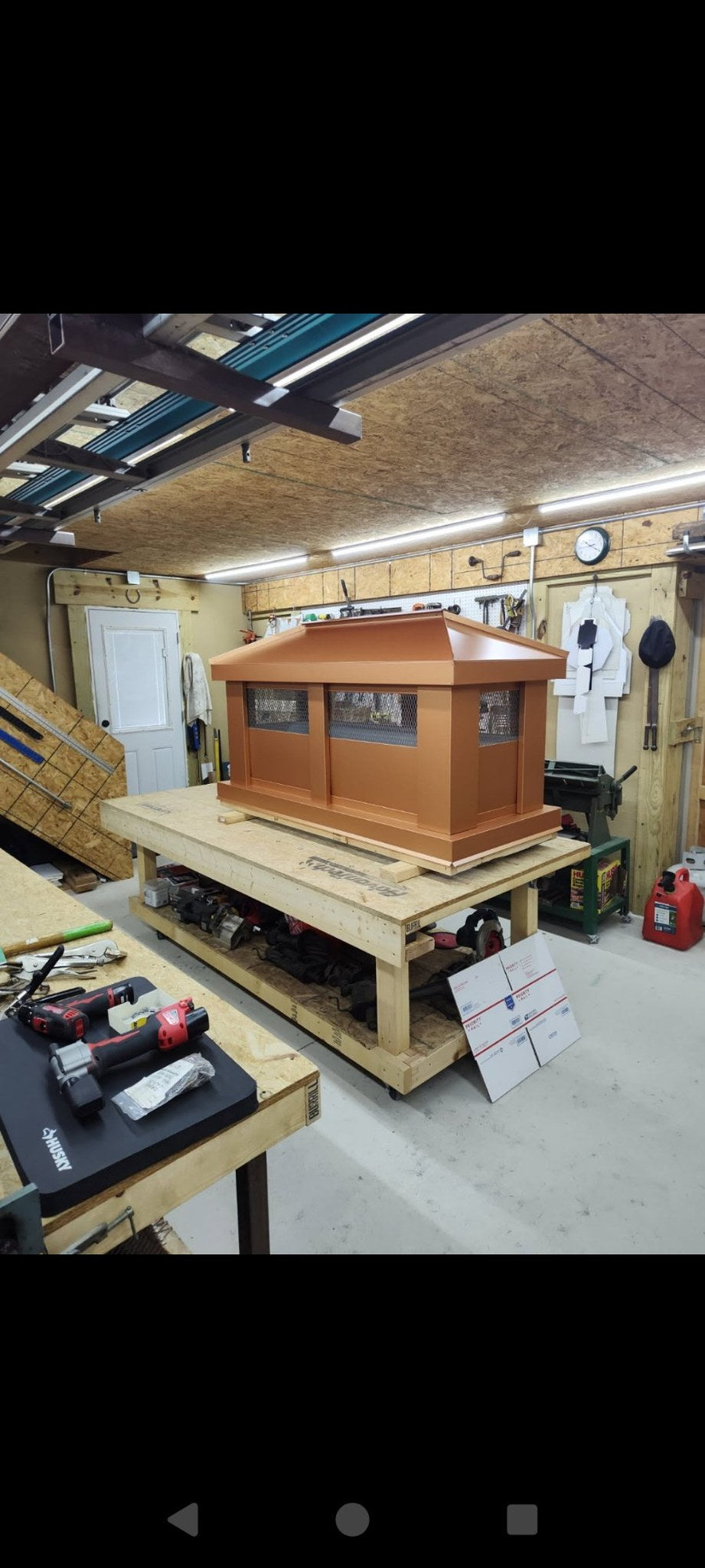

Kynar-Coated Aluminum — factory-applied PVDF coating that holds color without fading, chalking, or peeling. Available in a wide range of Kynar colors including black, copper tone, bronze, and more. Riveted construction with stainless steel color-match rivets. A long-lasting, low-maintenance option for any color palette.
Galvalume — zinc-aluminum alloy coating over steel. Strong corrosion resistance at an accessible price point. Mill-finish appearance. Riveted construction with stainless steel color-match rivets.
About Archaic Metal
I've been fabricating custom architectural sheet metal in South Jersey since 1994 — 32 years working copper, Kynar aluminum, Galvalume, and stainless steel by hand. Every cap that leaves my shop I built myself. If you have questions about your chimney or which cap is the right fit, message me or call.
Phone: (609) 352-9840
Resources
- How to measure your chimney for a custom cap
- How much does a chimney cap cost?
- High wind chimney caps: what actually works
- Do chimney caps prevent chimney fires?
Considering an extended height cap? Read Why Chimneys Draw Poorly (And What Chimney Pots Got Right) for a full breakdown of draft problems, chimney pot history, and how extended height caps solve both.
Not sure what size or style you need?
I personally review every order before I build it — send me your measurements and I'll confirm everything before fabrication starts. You won't be left guessing.
Request a quote or call/text me directly: (609) 352-9840
